Key Features
High-speed broadband connection with ADSL2+ or through a configured Ethernet WAN
Compliant with draft 802.11n standards
Supports draft 802.11n Wireless Access Point with WPA-PSK/WPA2-PSK
Delivers high-speed wireless connection; up to 300Mbps data rate
Expanded wireless coverage of up to 3 times the range of 802.11g products
WPS (Wi-Fi Protected Setup) for easy setup
Auto channel select
Integrated 4-port Ethernet switch, one port can be configured as a WAN interface
SOHO firewall security with DoS prevention and packet filtering
Universal Plug and Play (UPnP) compliant
Supports VPN pass-through
Easy Sign-On (EZSO) and web-based configuration
Quality of Service control
Dynamic Domain Name System (DDNS)
Easy network management
Ideal for home & SOHO users
Optimal Wireless Speeds and Coverage
With an integrated draft 802.11n Wireless Access Point, the router delivers up to 6 times speeds and 3 times wireless coverage of an 802.11b/g network device. It supports up to 300Mbps data rate, is also compatible with 802.11b/g equipment. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over Wireless LAN. The router also supports the Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button.
Express Internet Access

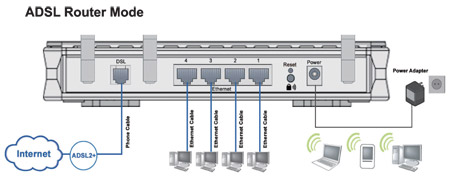

Integrated with ADSL2+ modem that complies with worldwide ADSL standards, the router supports downstream rates of up to 12/24 Mbps with ADSL2/2+, 8 Mbps with ADSL, and upstream rates of up to 1 Mbps. The users can enjoy not only high-speed ADSL2+ connection, but also running broadband applications such as interactive gaming, video streaming and real-time audio easier than ever. By doubling the upstream data rate, the Annex M standard included in the BiPAC 7300N model supports the latest ADSL2/2+ for higher upload speeds. Alternatively, by configuring one of Ethernet LAN ports as a WAN interface, an existing cable-modem (or pre-configured ADSL2+ modem from a service provider’s binding term) user can connect his or her device with the BiPAC 7300N to enjoy high-speed broadband connections.
Firewall Security and Smooth Traffic
With the built-in NAT default firewall, the advanced anti-hacker pattern-filtering protection features automatically detect and block Denial of Service (DoS) attacks. In addition, packet filtering provides high-level security for access control. Quality of Service control prioritizes the traffic and allows users to enjoy smooth traffic while running applications such as P2P or multimedia through the Internet.
Easy Network Management
The web-based user interface of the BiPAC 7300N makes it extremely easy for users to install and manage the network. The router supports both DHCP client and server, enabling system administrators to easily integrate this router into existing network environments, as well as manage IP assignment without having to reconfigure other stations.
Specifications
ADSL Compliance
• Compliant with ADSL Standard
- Full-rate ANSI T1.413 Issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
- ADSL over ISDN/U-R2
• Compliant with ADSL2 Standard
- G.dmt.bis (ITU G.992.3)
- ADSL2 Annex M (ITU G.992.3 Annex M)(BiPAC 7300NA only)
• Compliant with ADSL2+ Standard
- G.dmt.bis plus (ITU G.992.5)
- ADSL2+ Annex M (ITU G.992.5 Annex M)(BiPAC 7300NA only)
Network Protocols and Features
• NAT, static routing and RIP-1/2
• NAT supports PAT and multimedia applications
• Transparent Bridging
• Virtual Server and DMZ
• SNTP, DNS relay and DDNS
• IGMP snooping and IGMP proxy
Firewall & Virtual Private Network (VPN)
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Remote access control for web base access
• Packet and URL filtering
• Password protection for system management
• VPN pass-through
Quality of Service Control
• Supports the DiffServ approach
• Traffic prioritization based-on IP protocol,port number and address
Operating Environment
• Operating temperature: 0 - 40ºC
• Storage temperature: -20 - 70ºC
• Humidity: 20 - 95% non-condensing
Wireless LAN
• Compliant with IEEE 802.11n, 802.11g and 802.11b standards
• 2.4 GHz – 2.484 GHz frequency range
• Up to 300Mbps wireless operation rate
• WPS (Wi-Fi Protected Setup)
• Auto channel select
• 64/128 bits WEP supported for encryption
• Wireless Security with WPA-PSK/ WPA2-PSK support
• WDS repeater function support
ATM and PPP Protocols
• ATM Adaptation Layer Type 5 (AAL5)
• Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483)
• Bridged or routed Ethernet encapsulation
• VC and LLC based multiplexing
• PPP over Ethernet (PPPoE)
• PPP over ATM (RFC 2364)
• OAM F4/F5
Management
• Quick Installation Wizard and Auto-scan ADSL settings
• Web-based for remote and local management
• Firmware upgrades and configuration data upload/download via web-based interface
• Embedded Telnet server for local management
• SNMP v1/v2/v3, MIB-I and MIB-II support
• Available Syslog monitoring
• Supports DHCP server/client/relay
• Mail Alert
Hardware Specifications
Physical Interface
• WLAN: 3 detachable antennas
• DSL: ADSL port
• Ethernet: 4-port 10/100M auto-crossover (MDI/MDI-X) switch Ethernet port 1
can be configured as a WAN interface
• Factory default reset button
• WPS button
• Power jack
Physical Specifications
• Dimensions: 7.28" x 4.86" x 1.42" (185mm x 123.5mm x 36mm)
Power Requirements
• Input: 12V DC, 1A
Models & Supported Standards
• BiPAC 7300NA: Supports Annex A and Annex M (Annex A and Annex M: ADSL over POTS)
• BiPAC 7300NU: Supports U-R2 and Annex B (Annex B and U-R2: ADSL over ISDN)
|
